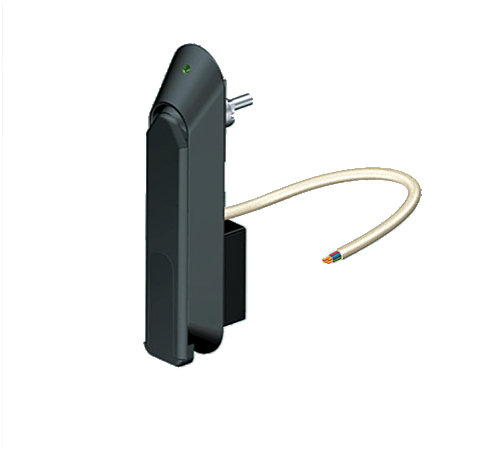

SWING HANDLE - ELECTRONIC

Assembled Materials
  • Swing Handle
  • Solenoid
  • Abloy Cylinder With Key
  • Wiring Harness
Application
  • Swing handle based security system for use in outdoor cabinets with IP65 security standard and providing complete usage trail with outputs
  • The handle is Zinc Die casted with
  • Escutcheon complete with IP 65
  • Certification, Cylinder housing with an Abloy
  • Key provides the customer with Medium or High security override mechanism
SPECIFICATIONS
  • Handle position indicator
  • Cam or Rod control option.
  • LED indicator.
  • Push to open feature
  • Mechanical override
  • Feedback on Handle status
  • Cutout of 50 x 25 x 2
  • High quality solenoid
  • Mechanical Override with Abloy cylinder is optional and when the key is used it provides an electronic output that the electronic swing handle has been overridden
Abloy Cylinder With Key

The ABLOY SENTRY cylinder has the same operating principle as the other ABLOY cylinders. The operation is based on rotating discs with one or several code grooves. The code selection in the lock takes place by turning the key one ¼ turn (90°) clockwise or counter-clockwise depending on the lock operation direction. The discs turn from 0° to 90° depending on the key cut. If the key and the cylinder fillings have an equivalent combination, the key will turn the cylinder drum further until the lock opens. When the key is turned back to the extraction position, the opening combination of the discs will be scrambled and the lock cannot be opened without the right key.

Left-handed locks are only needed for special applications where the right-handed lock is inapplicable (customer-specific).
