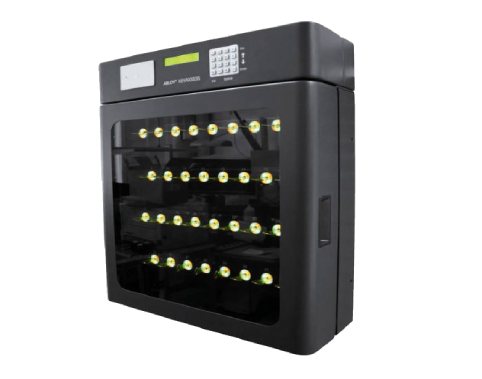

KEY MANAGEMENT SYSTEM- TRUKEE

Sterna Trukee is a unique activity based Key management system. Giving complete live control to system admin to monitor planned activities also monitor live key movements. It can perform its all operations without a need of PC as this is selfsufficient device. Local PC for admin & monitoring can be used. Full audit trail of activities, Keys will be retained in device and PC.

TRUKEE - Real mechanical Key copy of cylinder is in the Key Box, Only Real Key Inserted and turned is recognized, Unauthorized removal is not possible and return is validated. Authorization of user can be on 3 separate mechanism – PIN PAD based, Card Reader based, Lumidigm Biometric Reader based (optional).

Key Features
  • Secures Original Key & Monitors mapped activities, People are assigned to tasks and not keys.
  • Operate on real time mode or batch mode
  • Provides detailed usage on every key as to who took the key and when it was returned.
  • It will also send alarms over software or physically if it is tampered or not returned within stipulated timings
  • Authentication system works on - Proximity Card Reader based, PIN Pad Based, BioMetric (Lumidigm) based. Combination of any two of them can be implemented for secure authentication
Software Features
  • All key usage is tracked for activity, time, date and user id
  • Key removal based on activity, timezone and user activity linking , Alarm for overdue keys
  • Activity monitoring for timing, duration and frequency
  • Key removable by activity of key number
  • Multiple access levels - User, supervisor and Administrator levels
  • Web based server systems available for large customers.
  • The entire system stores data on an SD card based on the system
Hardware Features
  • Real Key management system
  • Keys held for usage. Unauthorised key cannot be taken out
  • PIN Pad, Card Reader & Biometric Reader for Authentication
  • Key locations illuminated by LED
  • SD Card storage for events storage
  • Monitored battery with 4 hour backup.
  • Relay interface for electromechanical lock
  • Integraion with External system like CCTV, Access Control system & Fire Alarm system possible
Specifications
  • Cabinet dimensions: (H)660mm x (W)500mm x (D)180mm
  • Weight : 40 Kg
  • Power supply: Input: 240V AC (UPS Supply Required)
  • Battery backup: DC12v 3Ah (H) (Tentatively 24 Hours Battery Backup)
  • Cabinet material: CRC Steel 3mm
  • Color options: Deep Grey Powder Coating
  • Door material: clear polycarbonate or solid metal
  • Operating temp: Ambient, for indoor use only (0°C to +55°C at 95% non-condensing relative humidity)
  • Mounting: Wall
  • Key positions: 8 / 16 / 24 / 32
  • Users per system: 2,000
  • Communications: Ethernet (TCP/ IP) 10/100 MB
  • Reader interface: Clock/ data, Wiegand, Serial (RS232/ TTL), PIN only, Lumidigm Biometric Reader (Optional)
  • Alarm interface: 1x10A/ 240V relay contacts for connecting to alarms, access control systems, CCTV etc.
